Reinforced concrete pipes (RCP) have long been an integral part of modern infrastructure, playing a crucial role in various construction projects. They are commonly used for sewage systems, stormwater drainage, and culverts due to their ability to withstand the pressures and loads associated with underground applications.
Table of Contents
What is Reinforced Concrete Pipe?
A reinforced concrete pipe (RCP) is a type of pipe used in construction for the conveyance of fluids such as water, sewage, or stormwater. It is made by combining concrete with reinforcement, typically in the form of steel bars or mesh. This combination enhances the strength and durability of the pipe, allowing it to withstand external pressures, ground movements, and the corrosive effects of certain substances. The reinforcement also helps prevent cracking and increases the overall resilience of the pipe.
Reinforced concrete pipes come in various sizes and are commonly used in infrastructure projects like sewer systems, drainage, and culverts. Their robust construction and long lifespan, often exceeding 100 years, make them a popular choice for engineers and builders in the construction industry.
Uses of Reinforced Concrete Pipes
Reinforced concrete pipes (RCP) find diverse applications in construction and infrastructure projects due to their strength, durability, and versatility. Some common uses include:
- Sewer Systems
- Drainage
- Culverts
- Utility Tunnels
- Irrigation Systems
- Tunnels and Subway Systems
- Industrial Applications
How Reinforced Concrete Pipes are made?
Reinforced concrete pipes (RCP) are composed of a combination of concrete and reinforcement materials, typically steel. The process of making reinforced concrete pipes involves several key steps:
1. Concrete Mix: A specific blend of concrete is prepared, usually consisting of cement, aggregates (such as sand and gravel), and water. The concrete mix is carefully proportioned to achieve the desired strength and workability.
2. Steel Reinforcement: Steel reinforcement, in the form of bars or mesh, is incorporated into the concrete mix. The reinforcement is strategically placed to provide additional strength and durability to the structure, preventing cracks and enhancing overall performance.
3. Molding and Forming: The prepared concrete mix, with the embedded steel reinforcement, is placed into molds or forms. These molds are shaped according to the desired dimensions and specifications of the reinforced concrete pipes.
4. Curing: Once the concrete is in the molds, the pipes undergo a curing process. Curing involves maintaining specific conditions, such as temperature and moisture, to allow the concrete to achieve its intended strength and durability.
5. Demolding: After the curing period, the concrete has hardened sufficiently, and the pipes are removed from the molds.
Lifespan of RCPs
Reinforced concrete pipes (RCP) are known for their durability and long lifespan. The actual life span of reinforced concrete pipes can vary based on several factors, including the quality of materials used, the manufacturing process, environmental conditions, and the application in which they are used. However, RCP typically has a proven lifespan of more than 100 years under normal operating conditions.
Installation of Reinforced Concrete Pipes
The installation of reinforced concrete pipes (RCP) involves several key steps to ensure proper alignment, stability, and functionality. Here’s a general procedure for the installation of reinforced concrete pipes:
1. Site Preparation:
- Excavate the trench to the required depth and width, ensuring it follows the specified alignment.
- Ensure the bottom of the trench is well-compacted and level.
2. Bedding Material:
- Place a layer of granular bedding material (such as crushed stone or sand) at the bottom of the trench to provide support and distribute loads evenly.
3. Pipe Placement:
- Lower the reinforced concrete pipes into the trench using appropriate lifting equipment. Take care to avoid damage to the pipes during this process.
4. Alignment and Grade:
- Align the pipes according to the design specifications, ensuring proper slope and alignment for effective flow.
- Use lasers or string lines to achieve the required grade.
5. Joint Installation:
- Install the appropriate joints between the pipes. Common types include tongue-and-groove or bell-and-spigot joints.
- Apply any recommended sealants to ensure watertight connections.
6. Backfilling:
- Gradually backfill the trench with suitable material, compacting it in layers to prevent settling.
- Take care not to damage the pipes during backfilling.
7. Compaction:
- Compact the backfill material around the pipes using compaction equipment to achieve the desired density.
Sizes and Uses of Reinforced Concrete Pipes
Reinforced concrete pipes (RCP) come in various sizes to accommodate different applications in construction and infrastructure projects. The sizes of RCP are typically specified based on the internal diameter (ID) of the pipe. Here are some common RCP sizes and their typical uses:
1. Small-Diameter RCP:
- Sizes: 300 mm to 600 mm (12 inches to 24 inches) ID
- Uses: Small-diameter RCP is often used for residential drainage, landscaping, and smaller-scale infrastructure projects.
2. Medium-Diameter RCP:
- Sizes: 750 mm to 1200 mm (30 inches to 48 inches) ID
- Uses: Medium-diameter RCP is suitable for municipal drainage, stormwater management, and sewer systems in urban and suburban areas.
3. Large-Diameter RCP:
- Sizes: 1350 mm and above (54 inches and above) ID
- Uses: Large-diameter RCP is employed in major infrastructure projects, including highway drainage, industrial applications, and large-scale stormwater management.
4. Elliptical RCP:
- Sizes: Varies based on design specifications
- Uses: Elliptical RCP is designed for specific applications where a lower profile or a more streamlined shape is required. It can be used in stormwater systems, tunnels, or areas with space constraints.
5. Arch RCP:
- Sizes: Customizable based on project requirements
- Uses: Arch RCP is used when a semi-circular or arch-shaped profile is needed, such as in bridge construction or when designing unique water conveyance structures.
Joints in Reinforced Concrete Pipes
Joints in reinforced concrete pipes (RCPs) play a critical role in ensuring the integrity and functionality of the overall pipeline system. Here are some common types of joints in RCPs:
1. Tongue-and-Groove Joint:
- Description: This joint type involves a protruding “tongue” on one end of the pipe that fits into a corresponding “groove” on the adjacent pipe.
- Use: Provides a secure connection and helps maintain alignment. Often used in stormwater systems and culverts.
2. Bell-and-Spigot Joint:
- Description: The bell (enlarged end) of one pipe fits over the spigot (plain end) of the adjacent pipe, creating a socketed connection.
- Use: Facilitates easy assembly and disassembly. Commonly used in sewer systems and drainage applications.
3. Rubber Gasket Joint:
- Description: Involves the use of a rubber gasket placed between the ends of adjoining pipes, creating a flexible and watertight seal.
- Use: Ensures a reliable and water-resistant connection. Widely used in water and wastewater applications.

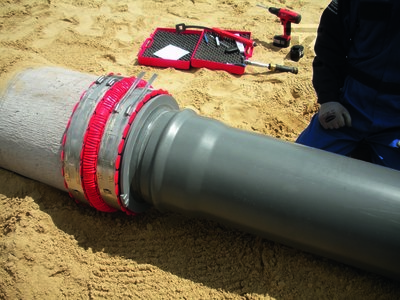

4. Compression Joint:
- Description: Involves compressing a rubber or neoprene gasket between the ends of two pipes using a compression band.
- Use: Provides a watertight seal and accommodates slight movements. Commonly used in water distribution systems.
5. O-Ring Joint:
- Description: Similar to rubber gasket joints, O-ring joints use a circular elastomeric ring to create a watertight seal between pipe ends.
- Use: Effective in preventing water infiltration. Commonly used in sewer and stormwater systems.
6. Flexible Joint:
- Description: Incorporates a flexible material, such as rubber, to allow for movement and absorb stress at the joint.
- Use: Suitable for applications where ground movement or settlement is anticipated, helping prevent damage to the pipeline.
Advantages and Disadvantages of RCPs
Advantages:
1. Strength and Durability: RCPs are known for their strength and durability. The combination of concrete and steel reinforcement allows them to withstand various external pressures and loads.
2. Long Lifespan: RCPs have a proven lifespan of over 100 years when installed and maintained correctly, making them a reliable and long-lasting solution for infrastructure projects.
3. Versatility: Available in various sizes and types, RCPs can be adapted to suit a wide range of applications, including stormwater management, sewer systems, drainage, and culverts.
4. Watertight Joints: The use of effective jointing systems, such as rubber gaskets or compression joints, ensures watertight connections, preventing infiltration and exfiltration of water.
5. Resistance to Corrosion: The steel reinforcement within RCPs is protected by the concrete, providing resistance to corrosion and ensuring the pipes maintain their structural integrity over time.
6. Smooth Interior Surface: RCPs typically have a smooth interior surface, reducing friction and allowing for efficient flow of fluids through the pipes.
7. Fire Resistance: Concrete is inherently fire-resistant, providing an added layer of safety in case of fire-related incidents.
8. Environmentally Friendly: Concrete is a recyclable material, and RCPs can be produced using recycled aggregates, contributing to sustainable construction practices.
Disadvantages:
1. Weight: RCPs can be heavy, which may require specialized equipment for handling and installation. This can increase installation costs and complexity.
2. Installation Challenges: Installing RCPs may involve excavation, and the process can be labor-intensive.
3. Cracking Potential: In certain conditions, concrete may be prone to cracking. Proper design, construction, and maintenance practices are crucial to minimize this risk.
4. Cost: While RCPs offer long-term value, their upfront costs may be higher compared to some alternative materials.
5. Transportation Challenges: Due to their weight and size, transporting RCPs to the construction site can be logistically challenging, especially for large-diameter pipes.
6. Less Flexible than Some Materials: Concrete is less flexible than certain materials, which may limit its use in situations where some degree of flexibility is required to accommodate ground movements.
Global Standards and Regulations for RCPs
Global standards and regulations for reinforced concrete pipes (RCPs) ensure that these critical infrastructure components meet specific requirements for quality, performance, and safety. Here are some of the key standards and regulatory bodies related to RCPs:
1. ASTM International (American Society for Testing and Materials):
ASTM has developed a range of standards related to concrete pipes. ASTM C76/C76M covers the specifications for reinforced concrete culvert, storm drain, and sewer pipe, while ASTM C655 deals with the manufacturing of concrete pipe with joints.
2. EN Standards (European Standards):
In Europe, the European Committee for Standardization (CEN) sets standards for construction materials. EN 1916 specifies requirements for concrete pipes and fittings, including dimensions, tolerances, and performance characteristics.
3. ISO Standards (International Organization for Standardization):
ISO develops international standards that can have global relevance. ISO 1916:2002 provides specifications for unreinforced, reinforced, and prestressed concrete pipes and fittings, including terminology and testing methods.
4. AASHTO (American Association of State Highway and Transportation Officials):
AASHTO develops standards for transportation infrastructure in the United States. M170/M170M focuses on the requirements for reinforced concrete culvert, storm drain, and sewer pipe.
5. BSI (British Standards Institution):
BSI provides standards for the UK construction industry. BS 5911-1:2002 outlines the requirements for concrete pipes and ancillary concrete products.
